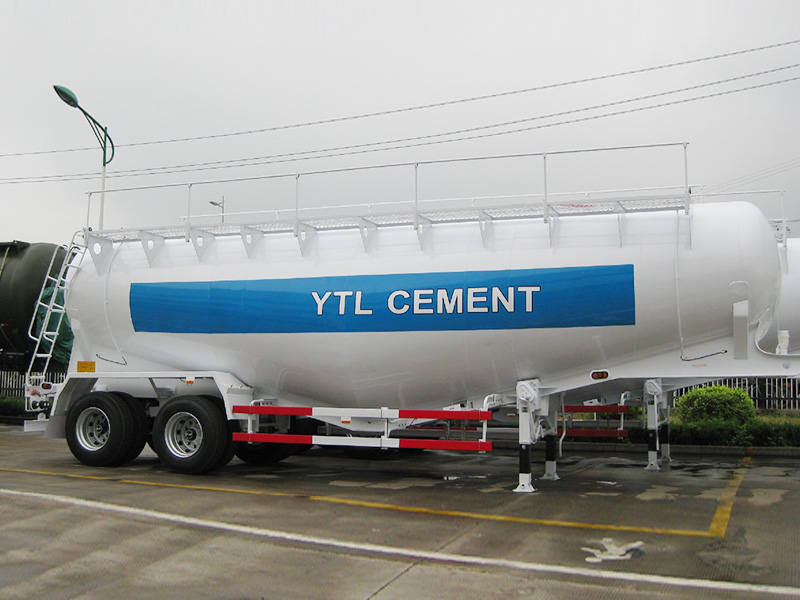

35M3 TWO- AXLE CEMENT TANKER SEMI-TRAILER

35M3 TWO- AXLE CEMENT TANKER SEMI-TRAILER

SPECIFICATION:

Overall Length: 10465 mm

Overall Width: 2,500 mm

Overall Height: 3, 650 mm

Wheelbase: 6,985+1500 mm


TANK:

Loading Capacity: 35M3

Compartment: single

Tank shell: Q345, 4mm thickness,

Dished ends: Q345, 4mm thickness

Air inlet: Via 4 inches male quick coupling

Pipe material: Carbon steel

Discharging Hose Diameter: 4 inches

Discharging valve: Single butterfly valve discharge with 100mm bellmouth ends at the rear

Discharging Hose Length: 7,000 mm

Hose quick coupling: 4 inches female quick coupling.

Discharging capacity: ≥1m3/min

Working pressure: 0.2 Mpa

Test pressure: 0.3 Mpa

Manhole: TWO

MAX. Horizontal Discharging Distance: 5,000 mm

MAX. Vertical Discharging Distance : 15,000 mm


RUNNING GEAR:

10-Leaf Spring.

Axle: FUWA (inboard brake drum) 13T X2 PCS

Brake: Dual line pneumatic brake system.

Parking Brake : Type 30/30 spring brake system on two axles.

Disc: 9.0-22.5, 8Pcs.

Tire: 12R22.5 tubeless radial tyres, 8 Pcs

King Pin: 2 inches

Landing leg: Two speed manual operation type with sand shoe.



ELECTRICAL:

Voltage: 24 Volt.

Receptacle: 7 way

Light: Front Marker Lamp: White

Side Marker Lamp: Amber

Rear Lamp: Red

Turn Signal Lamp: Amber


STRUCTURAL WEIGHT RATING:

Tare Weight: 11,000 Kg

Pay Load: 42,000 Kg.

G.V.W.R. : 53,000 Kg.


PAINTING:

Colour: customer corporate color and logo.

Note:all the details not mentioned above should comply with Manufacturer’s Standard.
